Pretensioning vs Post Tensioning: Which Method Do Hollow Core Slabs Use?

Searching for pretensioning vs post tensioning returns plenty of textbook definitions. Few of them explain what it means for a plant that is about to buy equipment. This article covers the difference, why hollow core slab production relies on pretensioning, and what to check on the tensioning side of the line before you buy.

1. What is pretensioning?

In pretensioning, wires or strands are stretched along the casting bed and anchored at both ends before any concrete is placed. The concrete is then cast around the stressed steel and cured. When the concrete reaches its specified strength, the steel is released. It tries to shorten, and because it is bonded to the concrete, it pushes the slab into compression.

1. Lay out and anchor the steelPull the wires or strands along the clean bed between the end abutments.
2. Tension to the design forceJack each wire or strand to the required force and check elongation against the expected value.
3. Cast and compact the concreteThe forming machine runs along the bed over the stressed steel. The steel must stay at force while this happens.
4. Cure and testLet the concrete gain strength, then confirm release strength by testing.
5. Release and cutTransfer the force to the concrete following the approved procedure, then cut the slabs to length.

2. What is post-tensioning?

In post-tensioning, the concrete is cast first, with ducts left inside it. After the concrete has hardened, tendons are threaded through the ducts, stressed with jacks and locked off against the concrete with anchorages. The force is carried by those end anchors rather than by bond along the length of the steel.

This makes post-tensioning flexible. Tendons can follow curved profiles, and the work can be done on site. It is common in bridges, parking structures, and long-span or heavily loaded slabs.

3. Pretensioning vs Post Tensioning at a Glance

4. Why hollow core slabs are pretensioned

A hollow core slab is thin for its span. Concrete is strong in compression and weak in tension, so the bottom face of a slab spanning between supports would crack under a modest load. Pre-compressing the concrete fixes that: the built-in compression has to be used up before the bottom face goes into tension.

Pretensioning fits the way hollow core slab production works. The line is a long, fixed bed, the product repeats, and a forming machine travels along the bed placing concrete over the stressed steel. That is the opposite of a one-off site pour, which is why post-tensioning is not the usual choice for this product. If you want to see the forming side of the same line, read our guide to a hollow core slab machine manufacturer, or look at the beton içi boş çekirdek levha kalıplama makinesi ve prekast beton levha ekstruder makinesi.

5. Pretensioning equipment on the line

The tensioning side of a hollow core line is more than a single jack. Pretensioning equipment usually includes:

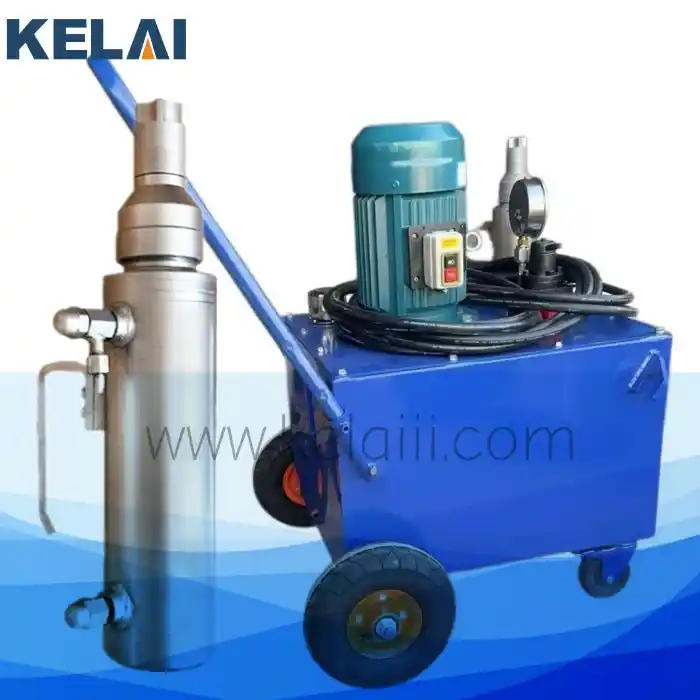

• A hydraulic tensioning machine and pump station to pull each wire or strand to force. See our hidrolik çelik tel gerdirme makinesi.
• Anchorage hardware, such as grips and chucks, that holds the steel at each end
• End abutments on the casting bed that carry the total force
• Measurement of force and elongation, so each bed can be checked against the design
• A consistent mix from a beton karıştırıcı harmanlama tesisi
• Strength testing before release, for example with an automatic compression testing machine

The same tensioning principle is used for other prestressed products. KELAI also builds a ön germeli̇ beton lento maki̇nesi̇ ve bir precast T beam making machine. For a broader view of all machine types, see our precast concrete machinery guide.

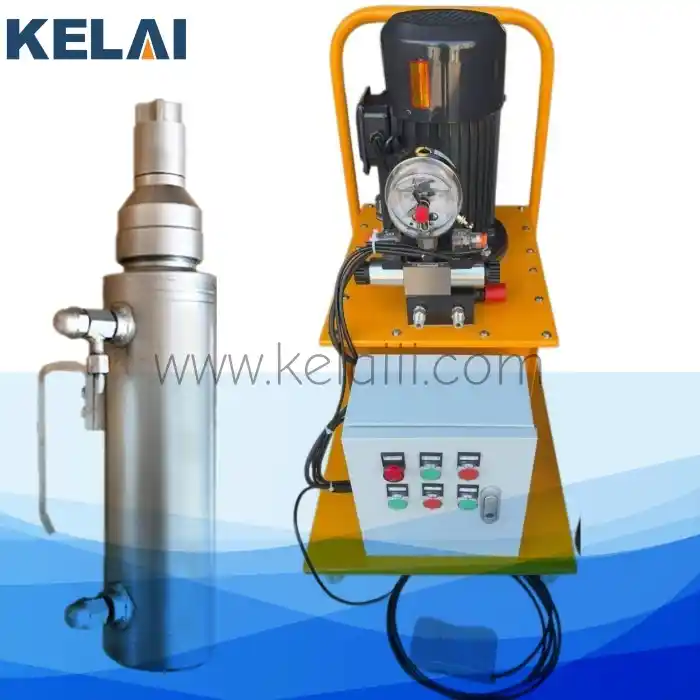

6. KELAI KL-800 Prestressed Steel Wire Tensioning Machine

The KL-800 hydraulic tensioning machine is designed for prestressed products including hollow core slabs, wall panels, beams and lintels. Full details are on the ön gerilimli çelik tel gerdirme makinesi page. The China site shows the same model as the KL-800 prestressing steel wire tension machine.

Steel sizes and tension force depend on the model and configuration, so please Bize ulaşın with your wire or strand specification and we will confirm what suits your line.

7. Five Checks Before You Buy Pretensioning Equipment

8. Safety basics

A tensioned wire or strand stores a large amount of energy. Treat the bed as a hazardous area while steel is under force.

• Keep people out of the line of the steel and the ends of the bed during tensioning and release.
• Use guards and anchors rated for the force, and inspect grips and chucks regularly.
• Release force only after release strength is confirmed, and follow the approved sequence.
• Inspect high-pressure hoses regularly and replace them on schedule, as the machine manual specifies.
• Train operators on the specific equipment and keep maintenance records.

Always follow the engineering design and the safety standards that apply in your country.
